Calculate color distance between two or more colors

Source: R/colorjam-color-distance.R
color_distance.Rd

Calculate color distance between two or more colors

Usage

color_distance(
  x,
  y = NULL,
  method = c("cmc", "cie2000", "cie94", "cie1976", "euclidean"),
  use_white = "F5",
  lightness = 2/3,
  chroma = 1,
  do_plot = FALSE,
  ...
)

Arguments

x

character color, required input colors.

  • When y is supplied, values in y are recycled to length(x), and each entry in x is directly compared to y.

  • When y is not supplied, x is compared to itself, returning a matrix.

y

character color, default NULL

method

character, default 'cmc', the color distance method, passed to farver::compare_colour().

  • Note that 'cmc' uses arguments lightness and chroma which have custom values 2/3 and 1, respectively. The defaults are 2 and 1 for acceptability, and 1 and 1 for perceptability. In our testing, 2/3 and 1 were more useful, since lightness on computer screen and in print is more easily perceived than on a painted surface.

  • In future, this argument may permit additional distance methods, and/or specific color function, in order to impose other criteria and adjustments.

use_white

character default "F5" representing the white reference, any value recognized by farver::as_white_ref().

  • The default 'F5' represents 'daylight fluorescent' and in qualitative testing was most effective when defining color distances.

  • The typical default 'D65' is 'daylight 6500K' and is typically used for neutral daylight without blue (cool) or yellow (warm) shifted background lighting.

do_plot

logical default FALSE, whether to plot results using show_color_distance().

...

additional arguments are passed to farver::compare_colour() and to show_color_distance().

Value

numeric color distance with length(x) entries when both x and y are supplied, or a numeric matrix with color distances between all entries in x.

  • An attribute 'method' is added with the color distance used, mainly so the method can be used by show_color_distance(), but also by other methods as relevant.

Details

Color distance is calculated using farver::compare_colour(), with some defaults intended in future to assist with color blindness calculations.

See also

Other colorjam internal: find_color_spread(), jam_pal(), rainbowJam_v1(), show_color_distance(), slot_colors(), vals2colorLevels()

Examples

color_distance("red", "firebrick", use_white="D65")
#>     firebrick
#> red  22.38522
#> attr(,"method")
#> [1] "cmc"

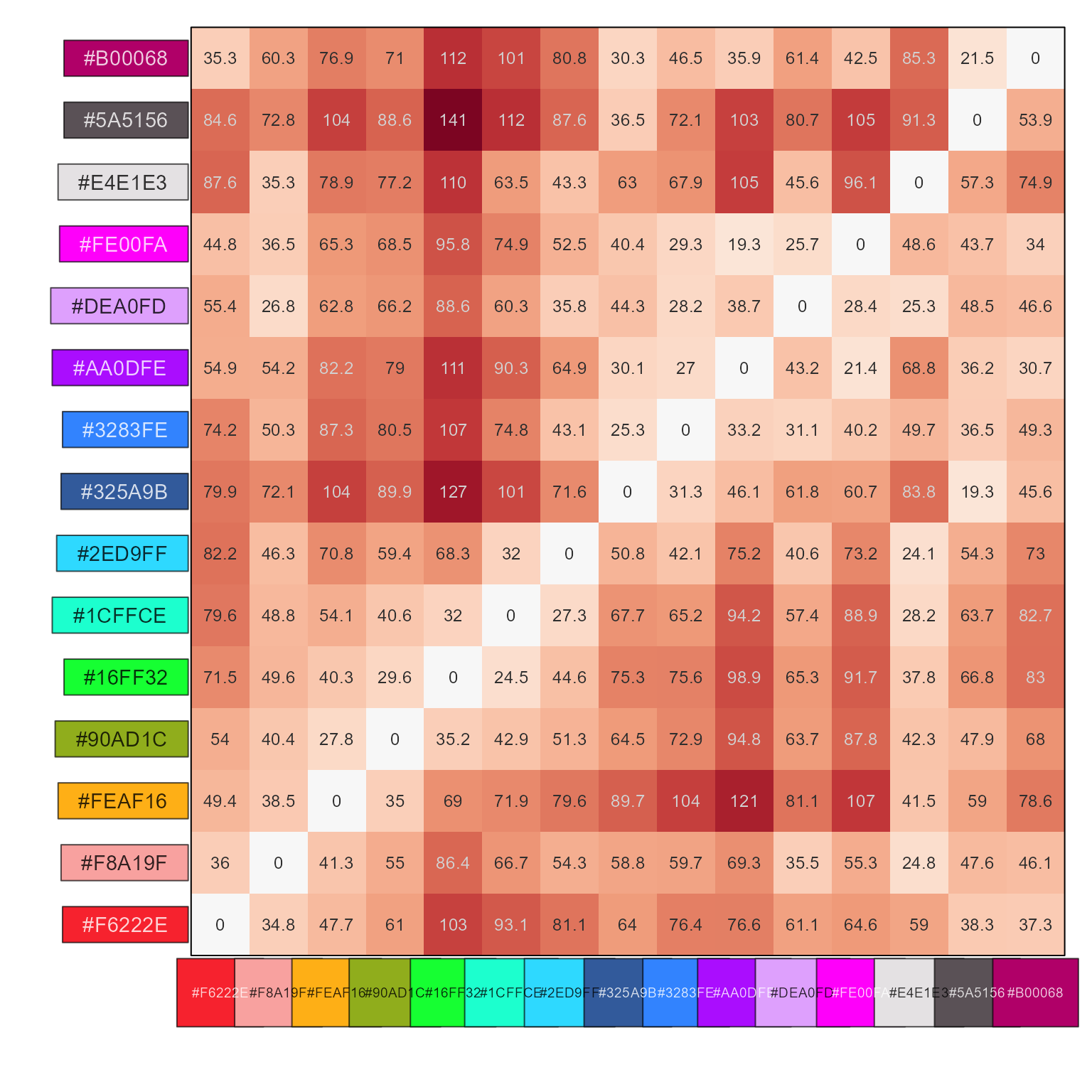

palette15 <- sort_colors(grDevices::palette.colors(15, "Polychrome 36"))
color_distance(palette15, do_plot=TRUE)

#>          #F6222E  #F8A19F   #FEAF16  #90AD1C   #16FF32   #1CFFCE  #2ED9FF
#> #F6222E  0.00000 34.84379  47.68588 60.99085 103.14303  93.06056 81.08992
#> #F8A19F 36.03859  0.00000  41.28901 54.99202  86.44702  66.72123 54.25993
#> #FEAF16 49.41768 38.54959   0.00000 34.95589  69.02022  71.94507 79.59131
#> #90AD1C 54.03879 40.38783  27.75446  0.00000  35.20674  42.94395 51.27620
#> #16FF32 71.54797 49.58663  40.31556 29.58820   0.00000  24.51203 44.58252
#> #1CFFCE 79.64773 48.78082  54.12378 40.63993  32.04925   0.00000 27.26390
#> #2ED9FF 82.16015 46.28397  70.80047 59.43527  68.30940  31.96025  0.00000
#> #325A9B 79.86854 72.08092 103.55727 89.93610 126.53861 100.61695 71.60691
#> #3283FE 74.18636 50.34021  87.27510 80.46798 106.93237  74.76470 43.13957
#> #AA0DFE 54.86296 54.15458  82.18213 78.97059 111.15367  90.28674 64.94245
#> #DEA0FD 55.37614 26.76941  62.77376 66.15942  88.63482  60.33702 35.83144
#> #FE00FA 44.82124 36.47454  65.29635 68.50702  95.84119  74.92244 52.54432
#> #E4E1E3 87.59680 35.34625  78.85312 77.15782 109.83938  63.50452 43.27117
#> #5A5156 84.57608 72.84184 103.81656 88.61737 141.35128 111.53990 87.62374
#> #B00068 35.29589 60.31186  76.94657 71.02580 111.87564 101.25893 80.75631
#>          #325A9B   #3283FE   #AA0DFE  #DEA0FD   #FE00FA  #E4E1E3  #5A5156
#> #F6222E 64.01133  76.35637  76.58090 61.09941  64.56939 58.99770 38.27193
#> #F8A19F 58.80475  59.74237  69.33947 35.52540  55.25808 24.80086 47.62922
#> #FEAF16 89.70572 103.74245 120.87628 81.05738 107.37404 41.48506 59.03484
#> #90AD1C 64.48735  72.87219  94.82841 63.68990  87.76692 42.33851 47.89049
#> #16FF32 75.28030  75.64659  98.91349 65.25501  91.69461 37.75507 66.79824
#> #1CFFCE 67.71538  65.21029  94.19185 57.41550  88.89785 28.18646 63.72876
#> #2ED9FF 50.77008  42.14003  75.17112 40.63685  73.18096 24.09502 54.34041
#> #325A9B  0.00000  31.26973  46.05568 61.82963  60.65175 83.80635 19.28201
#> #3283FE 25.29249   0.00000  33.21738 31.07325  40.19120 49.66207 36.51808
#> #AA0DFE 30.11630  26.95776   0.00000 43.17051  21.35990 68.82046 36.16143
#> #DEA0FD 44.27152  28.16969  38.71632  0.00000  28.41233 25.27299 48.52889
#> #FE00FA 40.37387  29.26387  19.31716 25.73361   0.00000 48.64033 43.70602
#> #E4E1E3 63.04856  67.89385 104.82523 45.57014  96.14184  0.00000 57.31114
#> #5A5156 36.51210  72.07421 103.27809 80.68266 105.19581 91.25019  0.00000
#> #B00068 30.27081  46.49837  35.86191 61.40719  42.54825 85.33315 21.54494
#>          #B00068
#> #F6222E 37.28848
#> #F8A19F 46.08040
#> #FEAF16 78.55305
#> #90AD1C 67.98670
#> #16FF32 83.02347
#> #1CFFCE 82.67046
#> #2ED9FF 72.98613
#> #325A9B 45.60677
#> #3283FE 49.34925
#> #AA0DFE 30.67636
#> #DEA0FD 46.55362
#> #FE00FA 34.02356
#> #E4E1E3 74.85973
#> #5A5156 53.93376
#> #B00068  0.00000
#> attr(,"method")
#> [1] "cmc"

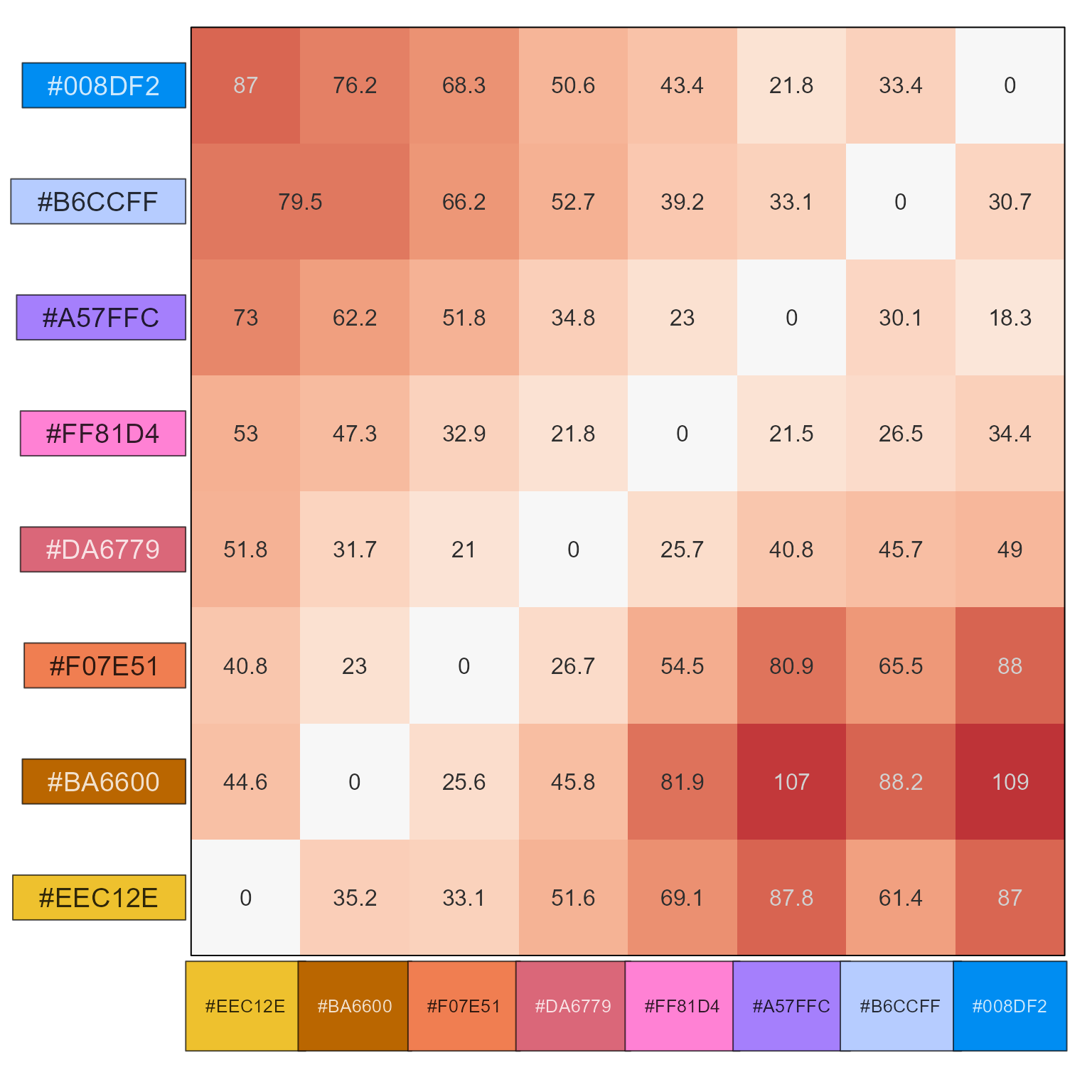

pc <- rainbowJam(8)
cd <- color_distance(pc);
show_color_distance(cd, pc=pc);
