Relayout each nodegroup in a bipartite (Cnet) graph, experimental

Usage

relayout_nodegroups(
  cnet,
  nodegroups = NULL,
  repulse = 3.5,
  fix_set_nodes = TRUE,
  spread_labels = TRUE,
  add_edges = TRUE,
  edge_factor = 2,
  do_final_relayout = NULL,
  final_repulse = 3.5,
  apply_by_size = TRUE,
  byCols = c("-num_terms", "-num_nodes", "nodegroup"),
  verbose = FALSE,
  ...
)

Arguments

cnet

igraph object with node layout already defined

nodegroups

list of node names, or communities object, passed to communities2nodegroups(). When NULL, it checks for supporting data in this order:

If graph attribute 'mark.groups' is defined, it is used.
If vertex attribute 'nodeType' exists, it calls get_cnet_nodeset().
Finally, it calls igraph::cluster_optimal(), hoping this method will be appropriate for the graph size.

repulse

numeric default 3.5, passed to relayout_with_qfr()

fix_set_nodes

logical default TRUE, whether to fix all nodes with nodeType=='Set' to prevent them from moving.

spread_labels

logical default TRUE, whether to apply spread_igraph_labels() after the relayout iterations are complete.

add_edges

logical default TRUE, whether to add edges within nodes of each nodegroup. The same is accomplished by setting edge_factor=0.

edge_factor

numeric default 2, used as the numerator in new edge weights with equation edge_factor/sqrt(n) where 'n' is the number of nodes in the nodegroup.

Set edge_factor=0 or add_edges=FALSE to skip this step.

do_final_relayout

logical default NULL, whether to apply one more relayout_with_qfr() after each nodegroup is adjusted. It uses final_repulse.

final_repulse

numeric used when do_final_relayout is TRUE, used as the 'repulse' argument in relayout_with_qfr().

apply_by_size

logical default TRUE, whether to apply the relayout to nodegroups ordered by size, using byCols to sort.

The default applies layout such that nodegroups with the most terms in names(nodegroups) are applied first, then largest to smallest nodegroups.
For Cnet plots, Gene nodes in nodegroups connected to the most Set nodes are adjusted first, then largest nodegroups, then sorted by nodegroup name.
It is unclear if the order is useful, future iterations of this approach may "move" other nodegroups aside first, then re-introduce each nodegroup into the layout one by one. Otherwise nodes could become "tangled" in the center, with no ideal method to optimize separation by nodegroup.

byCols

character vector used when apply_by_size is TRUE.

'-num_terms': reverse-order by the number of terms in each nodegroup name, assuming comma-delimited terms.
'-num_nodes': reverse-order by the number of nodes in each nodegroup.
'nodegroup': alphnumeric sort of the names(nodegroups).

verbose

logical whether to print verbose output.

...

additional arguments are passed to communities2nodegroups() for argument 'sep', or to spread_igraph_labels() for arguments regarding node ordering, etc.

Value

igraph object with updated layout.

Details

This function iteratively re-applies a layout function to each nodegroup in a graph, constraining the position of all other nodes for each iteration. Currently the layout uses relayout_with_qfr(), in future it may use any layout function.

The purpose is to "encourage" nodes in a nodegroup to become bundled together.

Strategy:

Each nodegroup is isolated, and relayout_with_qfr() is called on nodes in each nodegroup, while constraining all other nodes so they cannot move.
In theory, using the same repulse, the nodes would not move at all. Changing the repulse force could encourage nodes to stay together.
By default add_edges=TRUE which adds phantom edges to connect all nodes in a node group.
- The edge weight is scaled down by the number of nodes.
- These phantom edges are intended to help 'encourage' the nodegroup nodes to group together.
- Otherwise, most layout algorithms are only focused on specific edge forces, and not secondary forces which are common in Cnet plots.
- For example, nodes in a nodegroup all share the same network connections, however they are not otherwise attracted to each other in a network layout. In absence of any repulsive force, they would all be co-located. But with some repulsive force, they are repelled from each other, and sometimes end up radially positioned around the plot, and not grouped together.
- The phantom edges add some minimal force for nodes to be grouped closer together, and are removed once the layout is complete.
As a final polishing step, do_final_relayout=TRUE enables a final round of global node layout, with final_repulse.
- We observed that sometimes the nodegroups are too clumped, in a big circular "ball" due to the phantom edge process above. The final relayout is helpful to allow nodes to space out somewhat.
- It may be helpful to pass niter to control the number of layout iterations in this final step. The default is 500.

Todo

Bonus points:

Determine if each nodegroup is "split" around another nodegroup. If so, iterate that nodegroup using varying 'repulse' or other strategies to attempt to minimize the issue.

Examples

cnet <- make_cnet_test();
ns <- get_cnet_nodeset(cnet)
# mark.groups: highlight just one nodegroup
# nodegroups: enables the edge_bundling to work properly

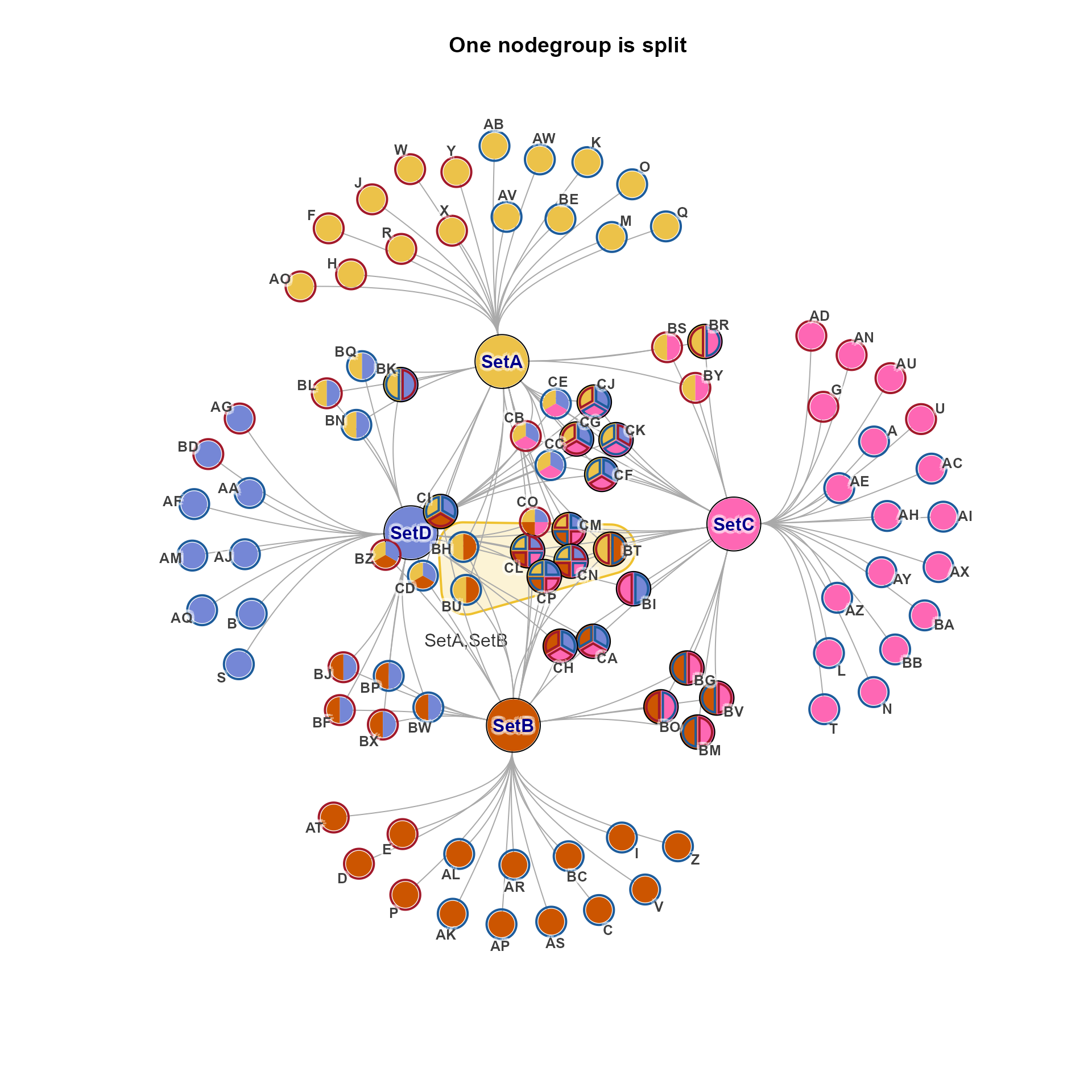

jam_igraph(cnet, mark.groups=ns["SetA,SetB"], nodegroups=ns,
   main="One nodegroup is split")


cnet2 <- relayout_nodegroups(cnet, nodegroups=ns["SetA,SetB"], do_final_layout=TRUE, verbose=TRUE)
#> ##  (12:30:14) 16Dec2025:   relayout_nodegroups(): Using nodegroups as supplied.
#> ##  (12:30:14) 16Dec2025:   relayout_nodegroups(): Applying to nodegroup 'SetA,SetB' with members: BH,BT,BU

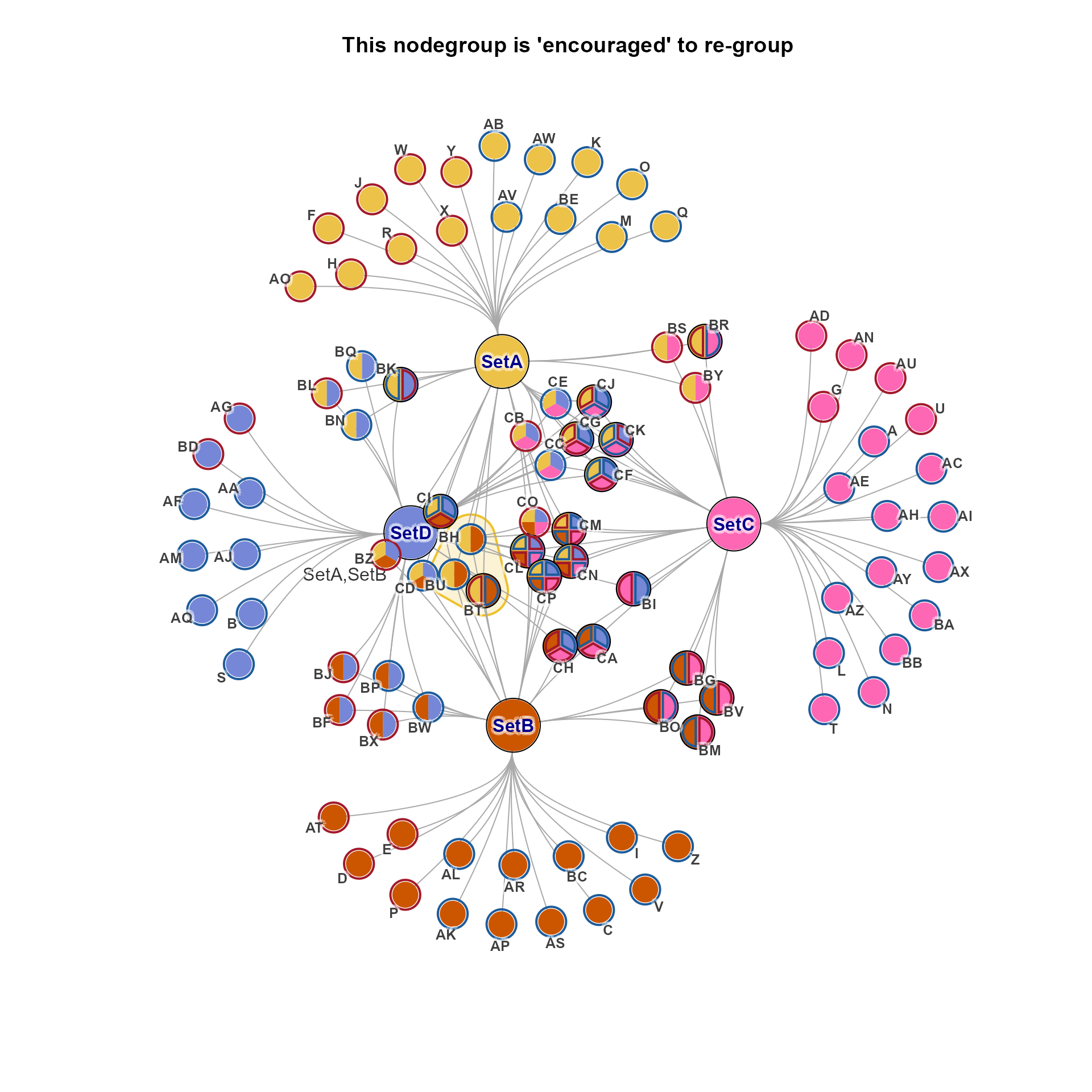

jam_igraph(cnet2, mark.groups=ns["SetA,SetB"], nodegroups=ns,
   main="This nodegroup is 'encouraged' to re-group")


# by default, it is applied to all nodes
cnet3 <- relayout_nodegroups(cnet)
jam_igraph(cnet3, mark.groups=ns, nodegroups=ns,
   main="Re-layout across all nodegroups")
