Combine marquee styles

Usage

combine_marquee_styles(mss = NULL, msl = NULL, ...)

Arguments

mss

one of the following, default is NULL:

NULL, which calls marquee::classic_style(...) as a convenient way to apply '...' arguments to create a new set of styles,
marquee_style_set object as created by marquee::classic_style().
list of named marquee_style objects, which will be used in place of what would otherwise be marquee::classic_style() as a base set of styles.

msl

list of named marquee_style objects, where each entry in the list is named by the inline tag to be defined. When provided as NULL, only the 'mss' argument values are used.

...

additional arguments are passed to marquee::classic_style() when mss is NULL.

Value

'marquee_style_set' object after combining 'mss' and 'msl' arguments.

Details

This is a helper function to combine existing 'marquee_style_set' together with a list that contains individual 'marquee_style' objects.

Note that Venndir item labels may also define inline styles to facilitate label "jittering" via arguments jitter_cex, jitter_color, and jitter_degrees in label_fill_JamPolygon(). The inline styles are named 'rel.#' or 'rel.#.#' where the '#' are integer index values. It is advised to avoid inline arguments with these names.

Examples

new_style_set <- combine_marquee_styles(msl=list(
   cursive=marquee::style(family="Above The Sky"),
   larger=marquee::style(size=marquee::relative(1.2))))
mg <- marquee::marquee_grob("Text {.cursive in cursive}", x=0.5, y=0.5,
   style=new_style_set);
grid::grid.newpage()
grid::grid.draw(mg)

mg2 <- marquee::marquee_grob("Text {.larger {.larger {.cursive in cursive}}}",
   x=0.5, y=0.3,
   style=new_style_set);
grid::grid.draw(mg2)


## custom styles for item labels
# define styles
ms <- list(
chalk=marquee::style(
   family="Chalkduster",
   weight="normal", width="normal",
   size=marquee::relative(1.5)),
cursive=marquee::style(
   family="Above The Sky",
   weight="normal", width="normal",
   size=marquee::relative(1.5)),
gothic=marquee::style(
   family="AcademyEngravedLetPlain",
   weight="normal", width="normal",
   size=marquee::relative(1.5)))
# create labels
il <- split(LETTERS, rep(letters[1:3], c(10, 10, 6)))
# apply inline markup around each label
il[[1]] <- paste0("{.chalk ", il[[1]], "}")
il[[2]] <- paste0("{.gothic ", il[[2]], "}")
il[[3]] <- paste0("{.cursive ", il[[3]], "}")

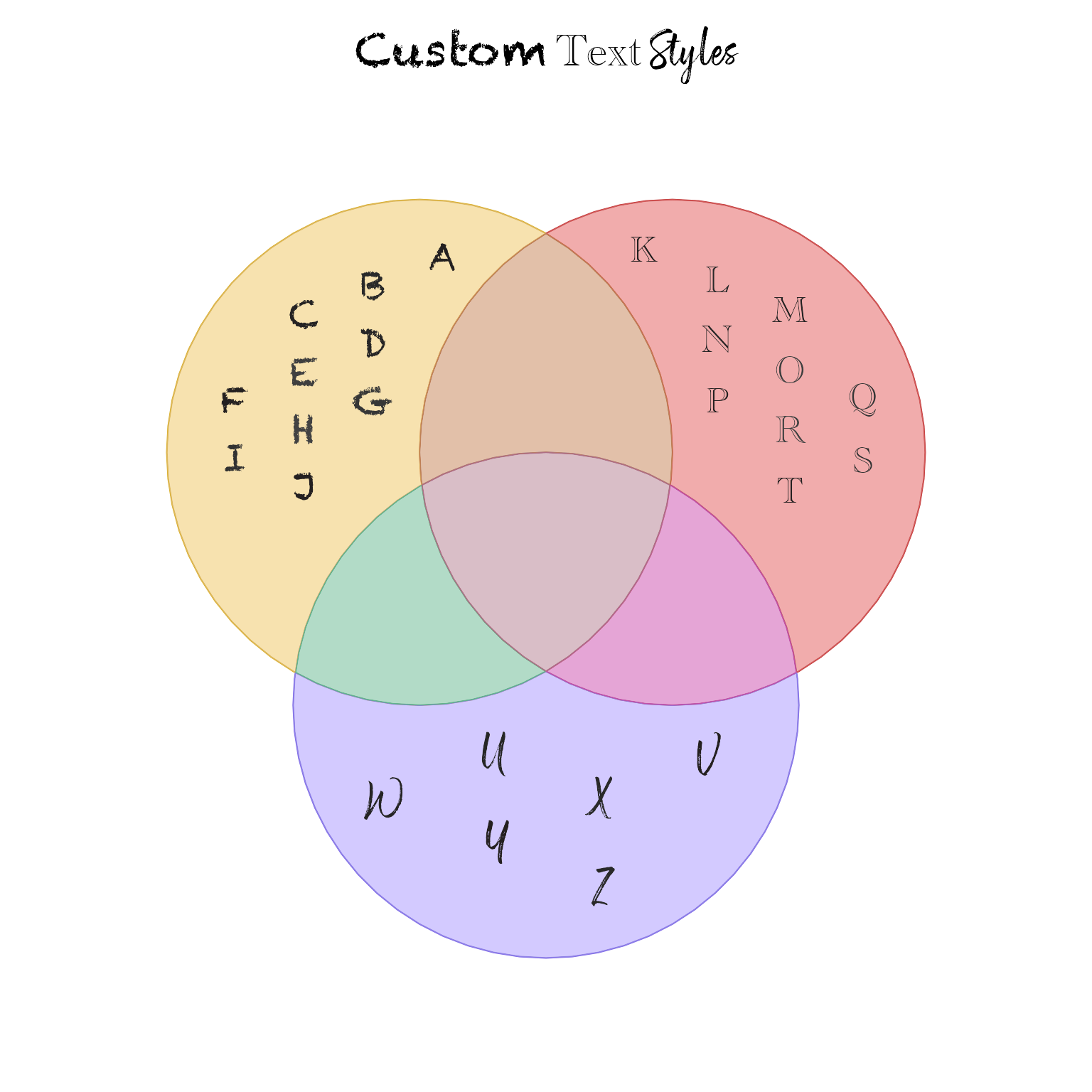

# draw the rest of the owl
vm <- venn_meme(il, item_buffer=-0.05, marquee_styles=ms,
   main="{.chalk Custom} {.gothic Text} {.cursive Styles}")

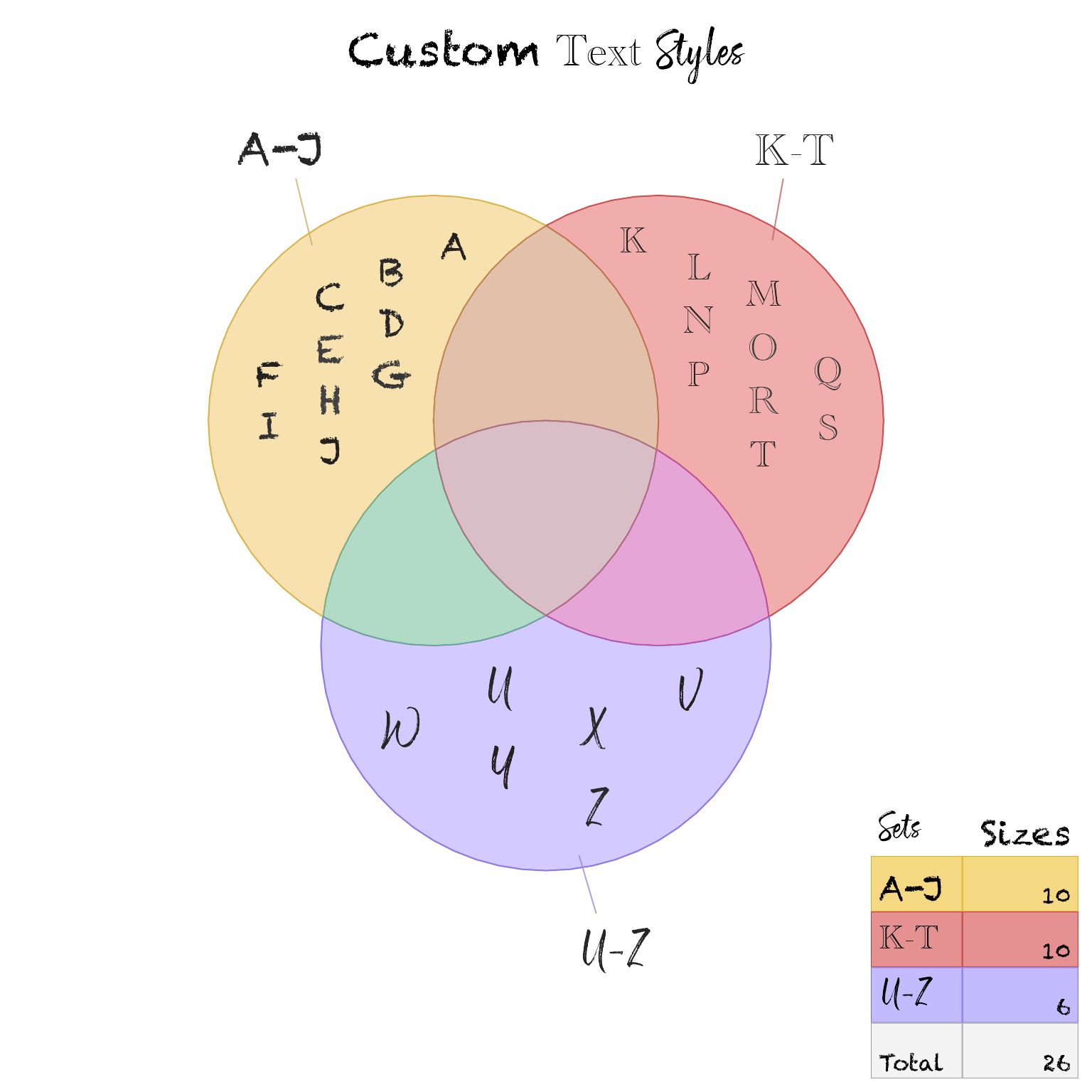

names(il) <- c("{.chalk A-J}", "{.gothic K-T}", "{.cursive U-Z}")
vm <- venn_meme(il, item_buffer=-0.05, marquee_styles=ms,
   expand_fraction=0.02,
   fontfamily="Chalkduster",
   show_labels="Ni", draw_legend=TRUE,
   legend_headers=c(Set="{.cursive Sets}", Size="{.chalk Sizes}"),
   main="{.chalk Custom} {.gothic Text} {.cursive Styles}")

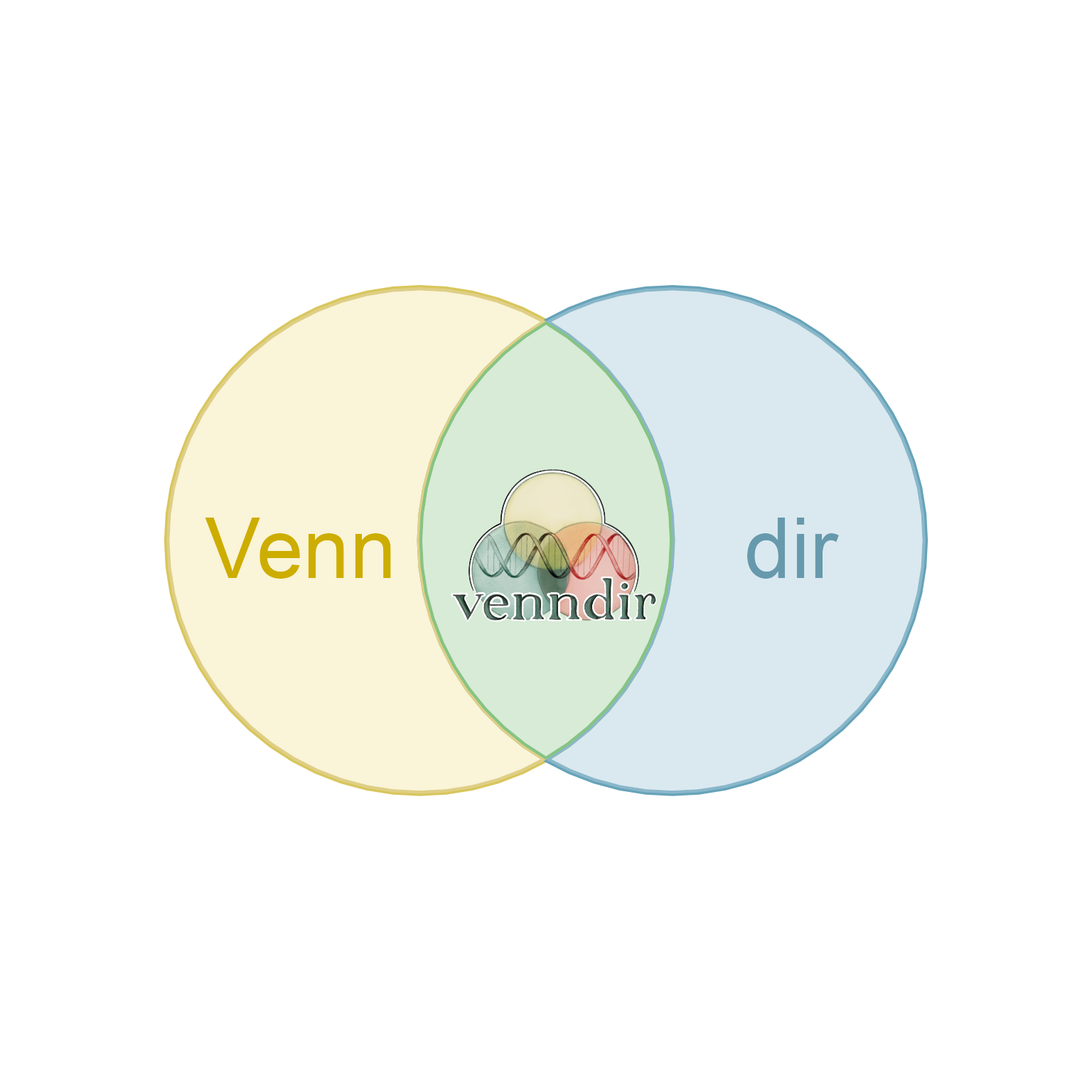

# example using an image
img <- system.file(package="venndir", "images", "venndir-transparent.png")
imgtag <- marquee::marquee_glue("![]({img})")

# dontrun{} to avoid C grid warning on some devices:
# drawDetails.GridGroup(x, recording = FALSE) : Group definition failed
   venn_meme(c("{.gold3 Venn}", "{.#6799AC dir}", imgtag),
      item_cex_factor=c(1.5, 1.5, 7),
      innerborder.lwd=1, outerborder.lwd=1,
      poly_alpha=0.5,
      set_colors=c("#EEDD79", "#87B9CC"))
#> Warning: Group definition failed

# This warning is apparently harmless
