Convert multiEnrichMap mem output to EnrichmentMap emap

Source: R/jamenrich-mem2emap.R
mem2emap.Rd

Convert multiEnrichMap mem output to EnrichmentMap emap

Usage

mem2emap(
  mem,
  overlap = 0.2,
  p_cutoff = NULL,
  min_count = NULL,
  colorV = NULL,
  cluster_function = igraph::cluster_walktrap,
  cluster_list = NULL,
  num_keep_terms = 3,
  keep_terms_sep = ",\n",
  repulse = 3.3,
  remove_singlets = FALSE,
  color_by_nodes = FALSE,
  size_by_genes = TRUE,
  median_size = 5,
  max_size = 25,
  apply_edge_width = TRUE,
  max_edge_width = 20,
  min_edge_width = 0.5,
  apply_edge_color = apply_edge_width,
  apply_direction = TRUE,
  direction_max = 2,
  direction_floor = 0.5,
  border_lwd = 3,
  seed = 123,
  spread_labels = TRUE,
  label_min_dist = 2.5,
  y_bias = 10,
  vertex.label.font = 2,
  use_layout_components = FALSE,
  use_shadowText = TRUE,
  do_express = FALSE,
  do_plot = FALSE,
  verbose = FALSE,
  ...
)

Arguments

mem

Mem output from multiEnrichMap()

overlap

numeric, default 0.2, value between 0 and 1 with Jaccard overlap coefficient required between any two pathways in order to create a network edge connecting these two pathways.

  • Jaccard overlap coefficient is reciprocal of Jaccard distance, using (1 - Jaccard_distance), where Jaccard_distance is calculated with dist(x, method='binary') with incidence matrix.

  • overlap=0.2 is default, which specifies roughly 20% overlap in genes shared between two pathway nodes, relative to the union of genes in those two pathway nodes.

  • Note these genes must be involved in enrichment, and therefore does not use all possible genes annotated to a pathway. Therefore, connections are only created with enriched genes are shared between pathways.

p_cutoff

numeric threshold used for significant enrichment P-value. The default NULL uses the value in the mem object. This cutoff, together with min_count, define which nodes are included, and the color fill for those nodes.

min_count

integer threshold for minimum genes involved in enrichment in order for a pathway to be considered significant during this analysis. When NULL it uses the threshold in mem.

colorV

character vector of R colors used for each enrichment. Default NULL uses colors defined in mem.

cluster_function

function, default igraph::cluster_walktrap, used to cluster igraph nodes in the resulting network graph. It is used to enhance the visual summary.

  • This function is not used when cluster_list is supplied.

cluster_list

list default NULL, optional list of pathway clusters, containing character vectors of igraph node/vertex names. It will be used instead of cluster_function when supplied.

num_keep_terms

integer, default 3, number of text terms to keep for each pathway cluster, used together with cluster_function. Common words are removed, remaining terms are sorted by decreasing occurrence, then used to summarize each cluster.

keep_terms_sep

character string, default is comma-newline, used to separate terms, used together with num_keep_terms.

repulse

numeric value passed to layout_with_qfr(), default 3.3.

  • Use repulse 'FALSE', 'NULL', or '0' will skip the layout, which is used by mem_find_overlap() to iterate numerous overlaps without spending time on layout each iteration.

remove_singlets

logical, default FALSE, whether to remove pathway singlets which have no connections to other pathways.

  • Using TRUE will help simplify busy figures, at the expense of being less complete.

color_by_nodes

logical, default TRUE, whether to colorize pathway clusters using node colors in each cluster. Note that a mix of colors often turns brown, so this feature has unpredictable benefit.

size_by_genes

logical default TRUE, whether to size nodes proportional to the number of genes involved in enrichment.

median_size

numeric used when size_by_genes=TRUE to define the median size, default is 5.

apply_edge_width

logical default TRUE, whether to apply edge width based upon the edge weight, which represents the Jaccard overlap.

max_edge_width

numeric maximum edge width, used when apply_edge_width=TRUE. Default 25 is intended to represent roughly the full size of a node.

min_edge_width

numeric minimum edge width, used after max_edge_width has been applied. The minimum is applied as a noise floor, so that any edge at or below the min_edge_width is set to this width. All edges above this width are left as-is.

apply_edge_color

logical whether to apply edge color based upon the edge weight, which represents the Jaccard overlap. The default matches apply_edge_width so that they are applied together.

apply_direction

logical default TRUE, whether to apply direction to the node border color, when supplied. Used with direction_max and direction_floor.

direction_max

numeric, default 2, indicating the directional score at which the maximum color is applied. Typically when using some derivative of z-score to represent directionality, values at or above 2 are effectively "maximum".

direction_floor

numeric default 0.5, the minimum directional score for any color to be applied, below which values are considered "non-directional". Typically when using some form of z-score, a value at or below 0.5 may be considered "not directional."

border_lwd

numeric line width of node borders, used to convey any direction associated with enrichment.

seed

numeric passed to set.seed() via the layout_with_qfr() layout algorithm, default 123.

spread_labels

logical default TRUE, whether to call spread_igraph_labels().

label_min_dist

numeric default 2.5 defines the label distance used in spread_igraph_labels().

y_bias

numeric default 10, passed to spread_igraph_labels().

vertex.label.font

integer to define the font style, default 2 sets bold font; alternatively use 1 for normal font.

use_layout_components

logical default FALSE, whether to call igraph::layout_components() to combine multiple network components, rather than calling layout_with_qfr() on the overall graph object.

use_shadowText

logical default TRUE, whether to render node labels using jamba::shadowText(). This setting is also stored in the graph attributes and is used by jam_igraph().

do_express

logical default FALSE, when TRUE it skips a number of aesthetic steps. This option is intended mainly for mem_find_overlap() to perform more rapid iterative evaluation of overlap thresholds.

do_plot

logical, default FALSE, whether to render the resulting plot using jam_igraph().

verbose

logical whether to print verbose output.

...

additional arguments are passed to jam_igraph() to customize the network plot, used when do_plot=TRUE.

Value

igraph object with an Enrichment Map, nodes are pathways, and edges are defined by the Jaccard overlap of genes involved in enrichment of each pair of pathways.

  • Edges are defined only when the Jaccard overlap is at least overlap.

  • Node sizes are proportional to the number of genes involved in enrichment, with median node size defined by median_size.

  • By default, edge width and color is defined by the overlap, ranging from 0 to 1. Graph attributes store the max_edge_width with edge width at Jaccard overlap 1; and edge_colramp as a function to convert weight to color, and can be used to create a color legend.

Details

This function is currently In development.

This function is intended to convert mem output from multiEnrichMap() into an EnrichmentMap igraph format which represents the statistical enrichment support from each pathway enrichment.

This function can apply P-value thresholds using the input mem, or using a custom value.

A node community detection function is applied by default which may help visualize subgroups of nodes. When defined, the communities are used to define nodegroups for edge bundling.

As of version 0.0.116.900, node size also scales the border line width for 'frame.width' and 'pie.border.lwd', so that the line width defined by border_lwd matches median_size, and is scaled proportionally by node size.

See also

Other jam Mem utilities: Mem-class, MemPlotFolio-class, fixSetLabels(), mem2cnet()

Other jam igraph functions: communities2nodegroups(), drawEllipse(), edge_bundle_bipartite(), edge_bundle_nodegroups(), fixSetLabels(), flip_edges(), get_bipartite_nodeset(), highlight_edges_by_node(), igraph2pieGraph(), label_communities(), mem2cnet(), nodegroups2communities(), rectifyPiegraph(), removeIgraphBlanks(), subsetCnetIgraph(), subset_igraph_components(), sync_igraph_communities()

Examples

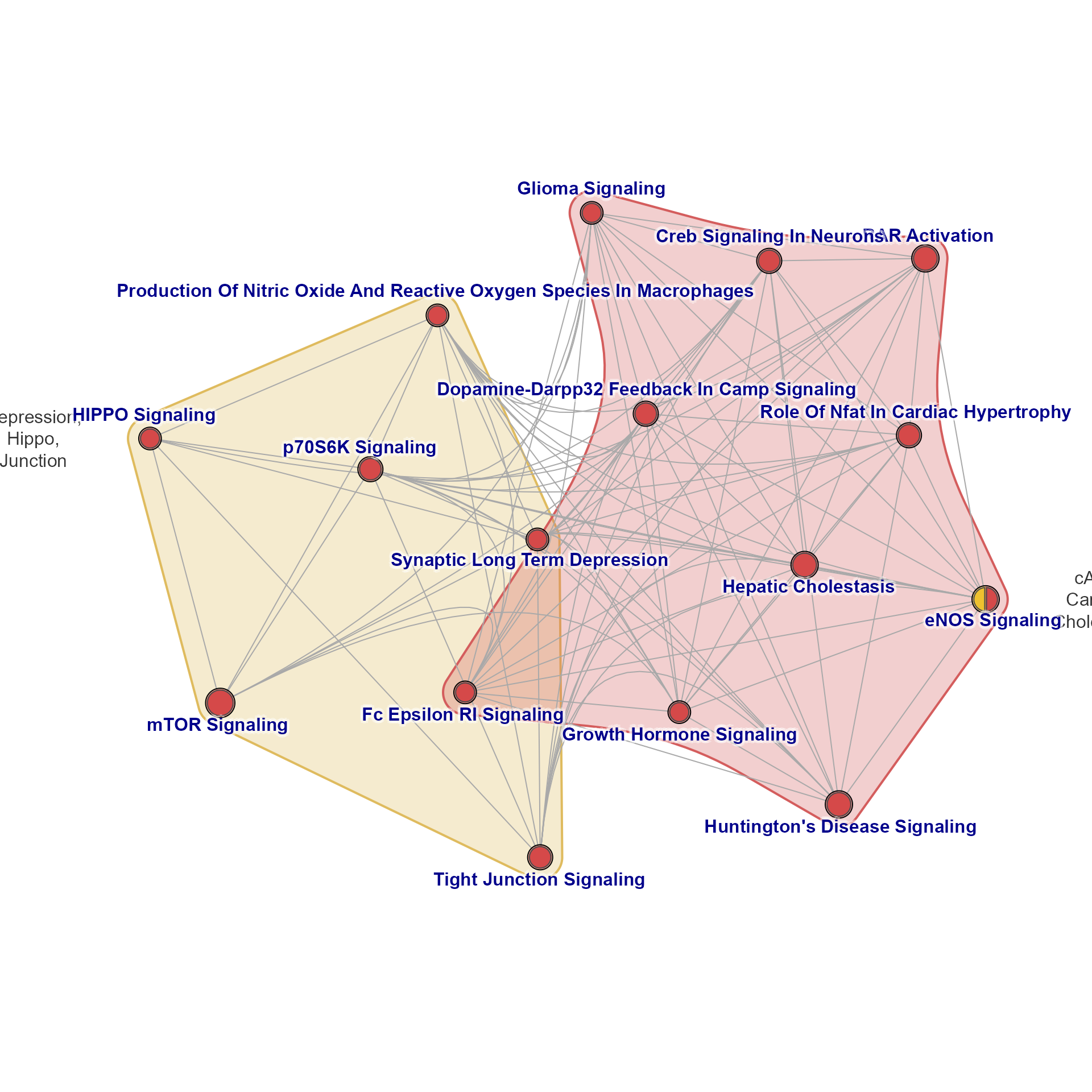

emap <- mem2emap(Memtest, min_count=2, max_edge_width=5, overlap=0.33)
jam_igraph(emap)

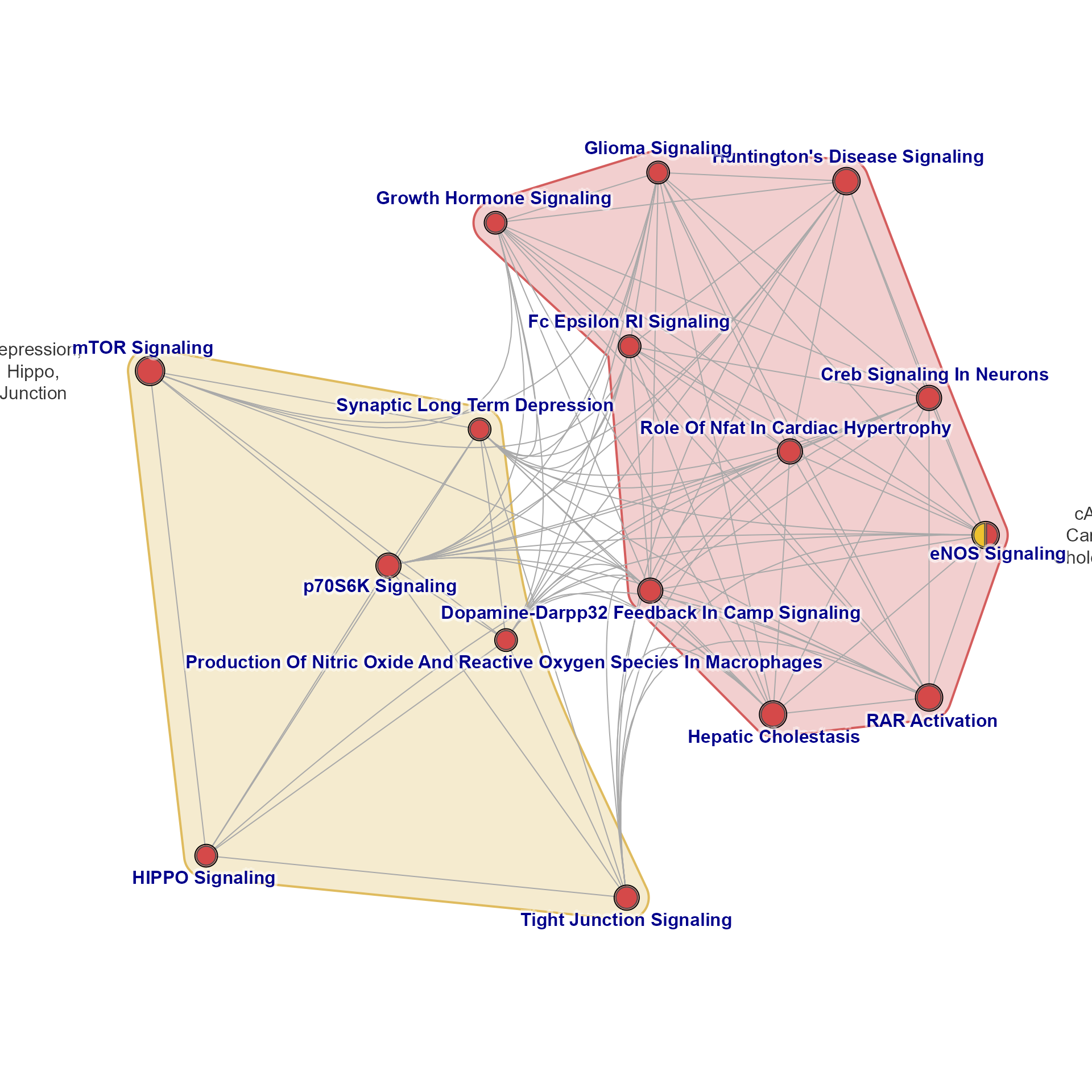

emap2 <- relayout_nodegroups(emap, final_repulse=4, y_bias=10, label_min_dist=2.5)
jam_igraph(emap2)


emapB <- mem2emap(fixSetLabels(Memtest), min_count=3,
   overlap=0.35, median_size=10,
   apply_edge_width=TRUE, max_edge_width=15)
jam_igraph(emapB)
