Add Venndir footnotes to a Venndir figure

Source: R/venndir-footnote.R
render_venndir_footnotes.Rd

Add Venndir footnotes to a Venndir figure

Usage

render_venndir_footnotes(
  venndir_output,
  x = "bottomright",
  footnote_x_inset = grid::unit(0, "lines"),
  footnote_y_inset = grid::unit(0.5, "lines"),
  footnote_fontfamily = NULL,
  footnote_color = "black",
  footnote_fontsize = 14,
  footnote_outline = TRUE,
  footnote_style = c("symbols", "header", "footnote"),
  draw_footnote = TRUE,
  use_devoid = getOption("use_devoid", TRUE),
  verbose = FALSE,
  ...
)

Arguments

venndir_output

Venndir object

x

character position for the footnote

footnote_fontfamily, footnote_color, footnote_fontsize

arguments to customize the font and color used to render the footnote.

footnote_outline

logical whether to draw an outline around the footnote for visible clarity, default TRUE. It calls jamba::setTextContrastColor() using footnote_color.

draw_footnote

logical, default TRUE, whether to draw the resulting footnote when one or more footnotes are defined. When FALSE a grid grob is returned if footnotes exist, otherwise it returns NULL.

...

additional arguments are ignored.

Details

This function adds a subtle footnote symbol, or symbols, if they are defined in the 'metadata' slot of the input Venndir object, entry 'footnotes'. Footnote symbols are comma-delimited and displayed together.

The intention is to have a visibly distinct indication when some footnote exists and should be reviewed.

See also

Other venndir internal: assemble_venndir_label(), assign_degree_groups(), check_systemfonts_family(), expand_range(), get_venn_polygon_shapes(), make_degrees_clockwise(), make_venn_combn_df(), match_list(), print_color_df(), shrink_df(), simple_ellipse(), subset_systemfonts(), venndir_label_style(), venndir_to_df()

Examples

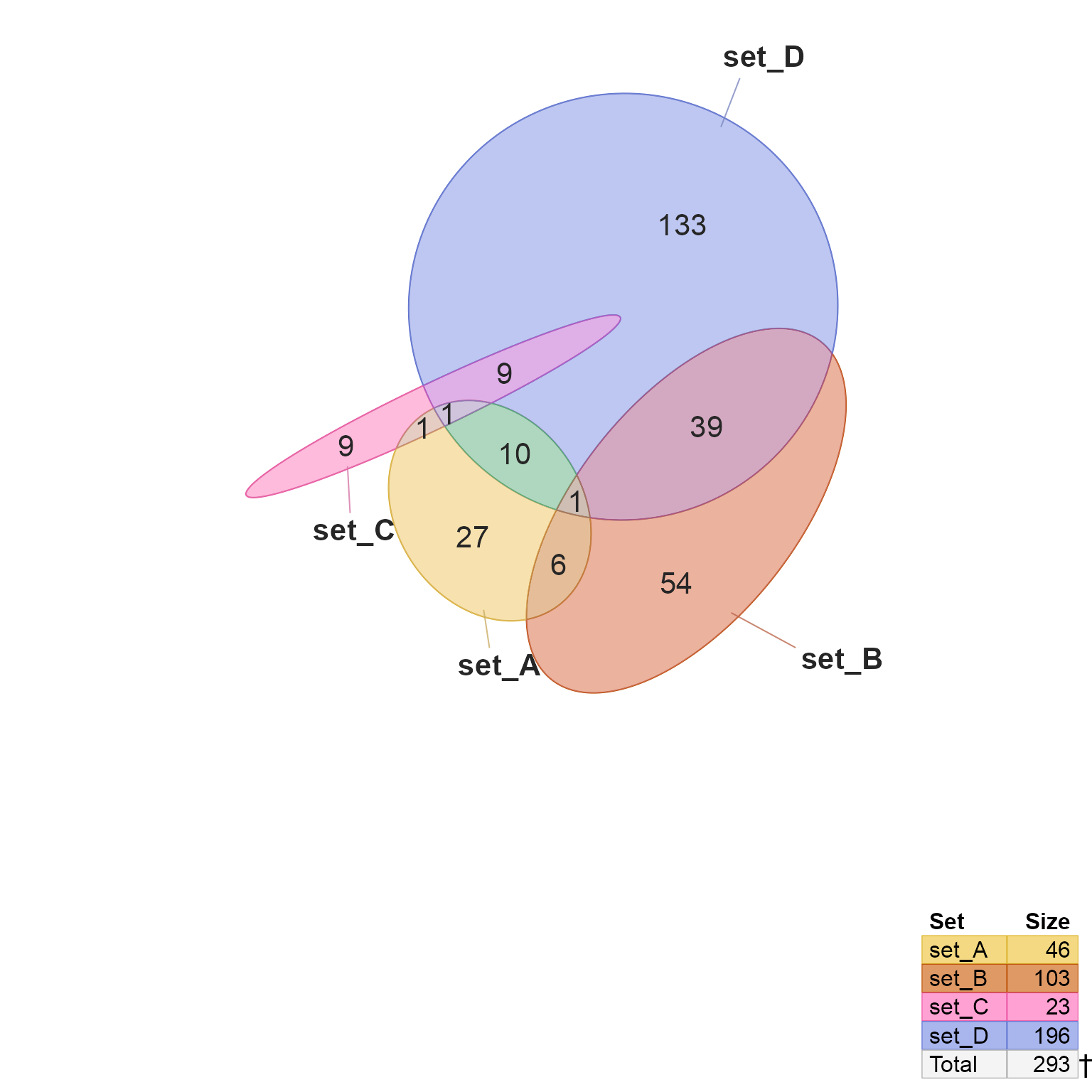

setlist3 <- make_venn_test(500, n_sets=4)
v3 <- venndir(setlist3,
   shape="ellipse",
   vector_method="label",
   proportional=TRUE)
footnotes(v3)
#>   symbol           type                           note
#> 1      † hidden overlap 1 overlap cannot be displayed.
render_venndir_footnotes(v3)

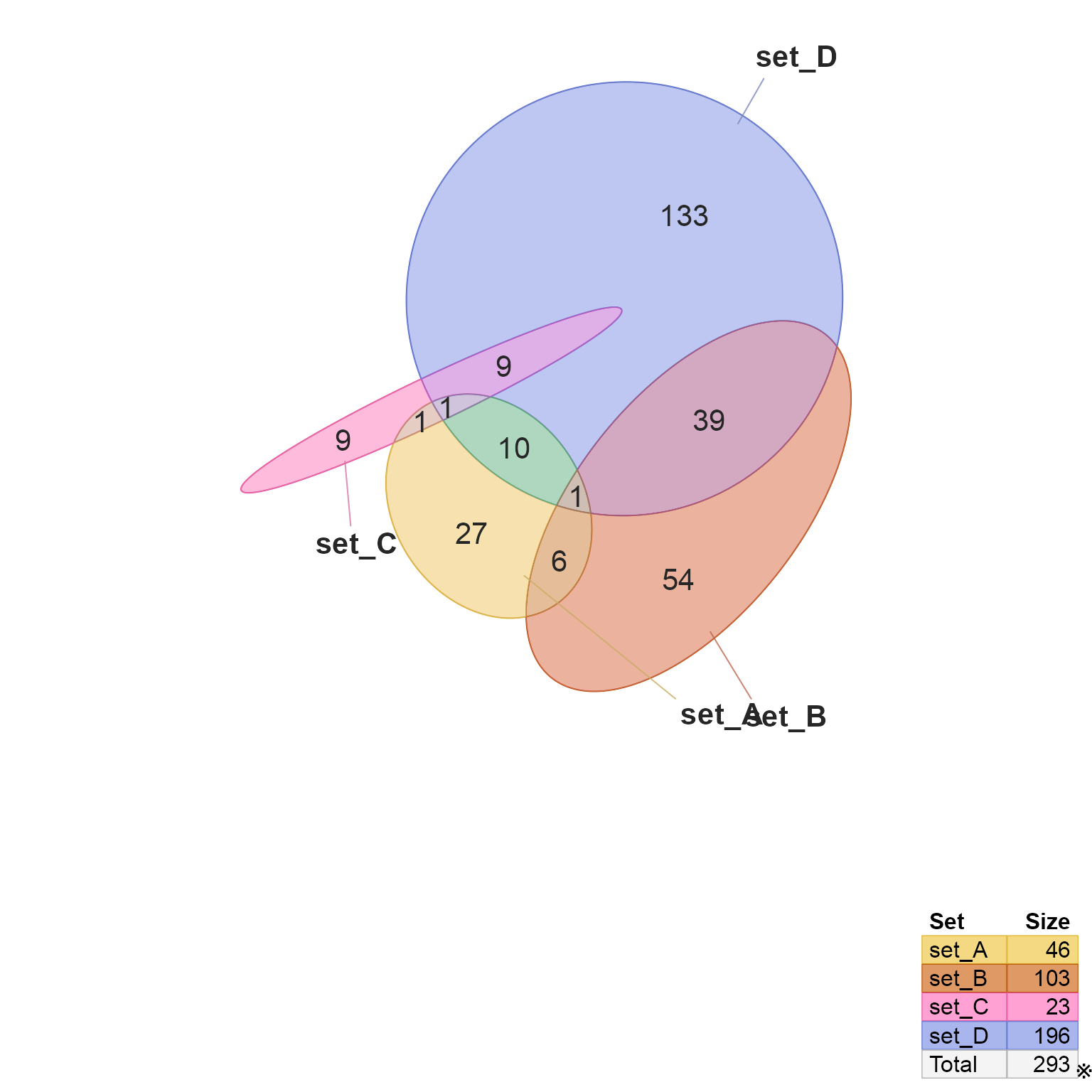

v3 <- venndir(setlist3,
   shape="ellipse",
   footnote_symbols="\u203B",
   proportional=TRUE)

footnotes(v3)
#>   symbol           type                           note
#> 1      ※ hidden overlap 1 overlap cannot be displayed.
