Summarize spacing between igraph nodes or node groups

Usage

summarize_node_spacing(
  g,
  layout = NULL,
  nodes = NULL,
  scaled = TRUE,
  each_group = TRUE,
  node_groups = NULL,
  dist_type = c("all", "nearest_node", "all_nodes"),
  verbose = FALSE,
  debug = FALSE,
  ...
)

Arguments

g

igraph object

layout

numeric matrix with x,y coordinates, or NULL (default) to call get_igraph_layout() which uses either: igraph::graph_attr(g, 'layout') (preferred) or igraph::V(g)$x and igraph::V(g)$y (deprecated in igraph).

nodes

character with optional node names, or integer index of nodes in g to define a subset of nodes for which statistics are calculated. Useful to focus on a specific subset of nodes, for example one or two Cnet nodesets.

scaled

logical, default TRUE, whether to report percent spacing relative to the max x-axis/y-axis range, similar to the min_percent and percent_spacing argument units in other node spacing functions. Note that percent spacing is scaled from 0 to 100.

each_group

logical, default TRUE, whether to summarize each node group. When node_groups is NULL, by default it will use get_cnet_nodesets().

node_groups

list of vectors named by node group, where each vector contains vertex names igraph::V(g)$name.

  • The purpose is to help summarize spacing within and across node groups.

  • For Cnet plot data, when each_group=TRUE and node_groups=NULL, it will call get_cnet_nodesets() to use Cnet nodesets as node groups.

  • Cnet nodesets were the primary motivation for this function, however it also works well using network communities.

dist_type

character string, default 'nearest_node' with the distance summary to provide:

  • "nearest_node" only the nearest node distance, helpful to assess whether all nodes have a minimum distance from other nodes.

  • "all_nodes" all node distances from each node, helpful to assess the overall spacing between nodes.

verbose

logical indicating whether to print verbose output.

...

additional arguments are passed to internal functions.

Value

list of numeric matrix data, named by the summary used.

  • Columns: 'Min', 'Q1', 'Median', 'Mean', 'Q3', 'Max'.

  • Rows when each_group=TRUE include each names(node_groups).

  • Rows with each_group=FALSE include 'all', 'edge', 'nonedge'. The 'edge' represents only node-node connected by an edge; 'nonedge' represents only node-node not connected by an edge; and 'all' includes all node-node pairings.

  • The list names when each_group=FALSE:

    • 'summary' with overall summary values

  • The list names when each_group=TRUE:

    • 'nearest_within': nearest-node, within each node group

    • 'nearest_across': nearest-node, across each node group

    • 'all_within': all-nodes, within each node group

    • 'all_across': all-nodes, across each node group

Details

This function is a simple wrapper to calculate typical distances between nodes or node groups in a given network layout.

It is intended to help determine values to use for percent_spacing with apply_nodeset_spacing(). The optimal value is subjective, and depends upon the total number of nodes, and the relative spacing of nodes in subgroups such as Cnet nodesets, or igraph community clusters.

Specific to Cnet plots and bipartite graphs, there are two important metrics:

  1. Within-group spacing

    • 'nearest_within' matrix, column 'Median' is useful to assess the spacing within each group of nodes.

  2. Across-group spacing

    • 'nearest_across' matrix, column 'Min' is useful to assess the minimum distance between two node groups. Column 'Q1' may be useful to determine whether a node group has substantial overlaps with another node group.

Even still, sometimes the node groups overlap each other, which is not summarized here.

Todo

Re-evaluate how to represent summary values that cannot be calculated. For example, a nodeset with only one node cannot calculate within-nodeset distances.

Background:

  • Typically, min(NULL) returns Inf (infinite). If there were no node-node distances, the calculation would return Inf.

  • Currently, this function returns NA for such cases. The main motivation is for downstream summary statistics, for example taking column median or column mean with argument na.rm=TRUE for convenience.

See also

Other jam utility functions: ashape(), avg_angles(), avg_colors_by_list(), bulk_cnet_adjustments(), call_fn_ellipsis_deprecated(), cell_fun_bivariate(), collapse_mem_clusters(), colorRamp2D(), deconcat_df2(), display_colorRamp2D(), enrichList2geneHitList(), filter_mem_genes(), filter_mem_sets(), find_colname(), find_enrich_colnames(), get_hull_data(), get_igraph_layout(), gsubs_remove(), handle_igraph_param_list(), isColorBlank(), make_legend_bivariate(), make_point_hull(), mem_find_overlap(), order_colors(), rank_mem_clusters(), rotate_coordinates(), subgraph_jam(), subset_mem(), xyAngle()

Examples

cnet <- make_cnet_test(num_sets=2)
igraph::V(cnet)$size <- igraph::V(cnet)$size * 2;
igraph::V(cnet)$label.cex <- igraph::V(cnet)$label.cex * 2;

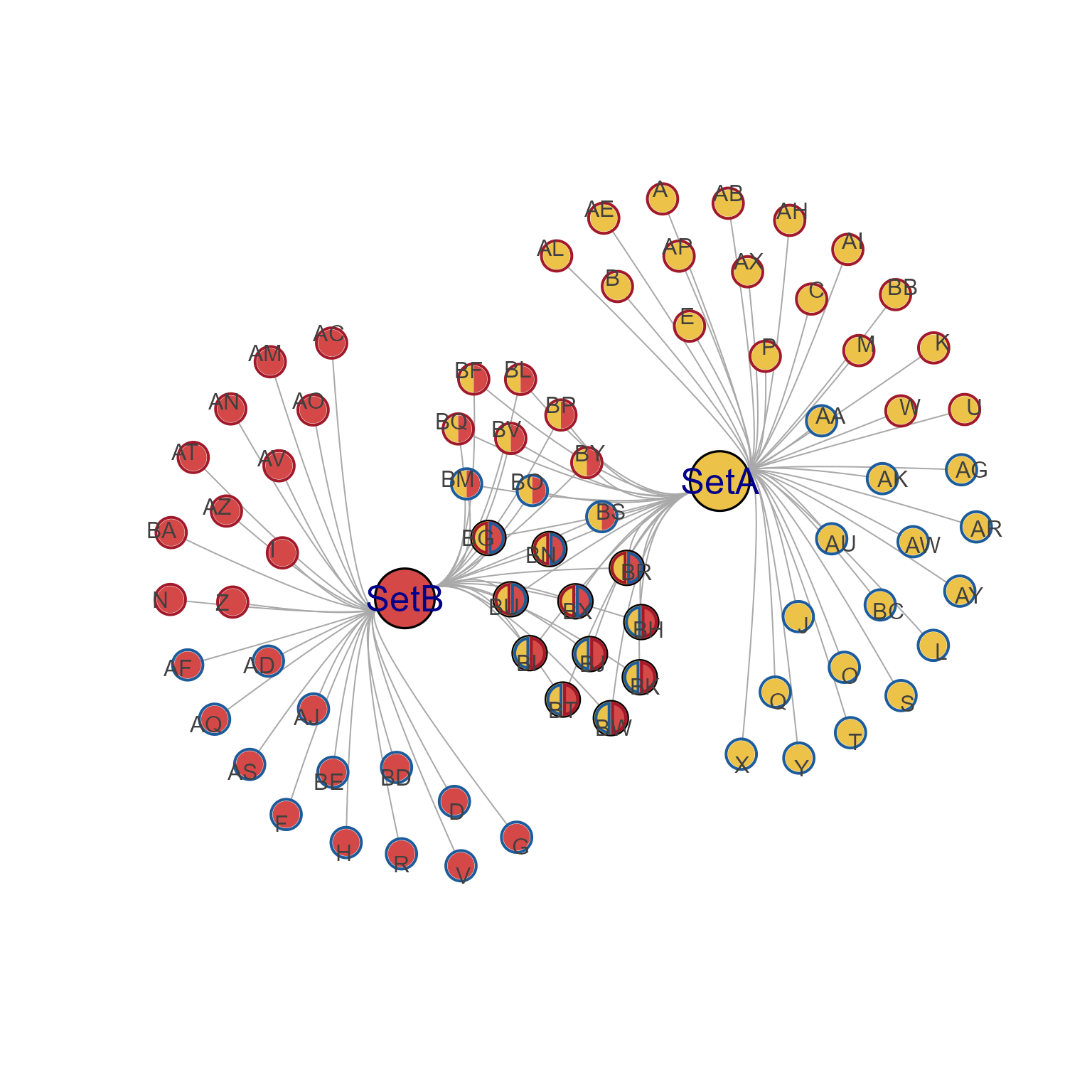

jam_igraph(cnet)
